nano SIM card

HTC Desire 520 uses a nano SIM card.

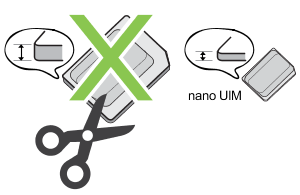

Use a standard nano SIM card only. Inserting a modified card that is thicker than the standard nano SIM card may cause the card to not fit properly or damage the card slot.

Inserting a nano SIM card

  1. Take the back cover off.
  2. Remove the battery.

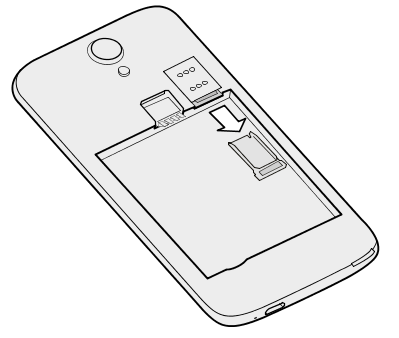

  3. Remove the tray.

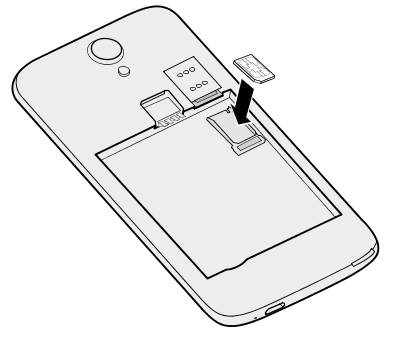

  4. With the nano SIM card's gold contacts facing up and its cut-off corner facing out, insert the card into the tray.
  5. Position the tray at the edge of the slot at an angle. Then carefully slide the tray into the slot.

Removing a nano SIM card

Important: Make sure to switch off HTC Desire 520 before removing the card.
  1. Take the back cover off.
  2. Remove the battery.
  3. Remove the tray.
  4. Remove the nano SIM card from the tray.
