Dual nano SIM cards

HTC One E9‍s has two nano SIM card slots. You can insert a 4G LTE/3G/GSMnano SIM card in either slot.

When you have two cards inserted, only one card can connect to a mobile data network. The other card will connect to the 2G network only. Go to Settings > Dual network manager to set which card connects to mobile data network.

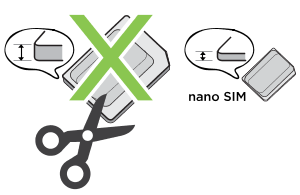

Use a standard nano SIM card only. Inserting a modified card that is thicker than the standard nano SIM card may cause the card to not fit properly or damage the card slot.

Inserting nano SIM cards

  1. Make sure HTC One E9‍s is off and hold it securely with the front facing down.

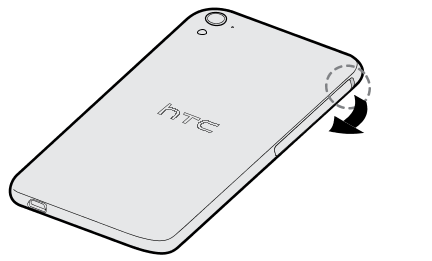

  2. Open the slot cover with your thumb or finger.

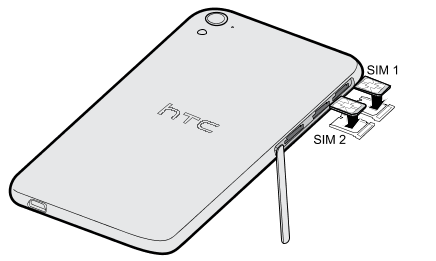

  3. Pull the trays out from the nano SIM slots.
  4. Place the nano SIM cards into the trays with the gold contacts facing up and the cut-off corner facing out.

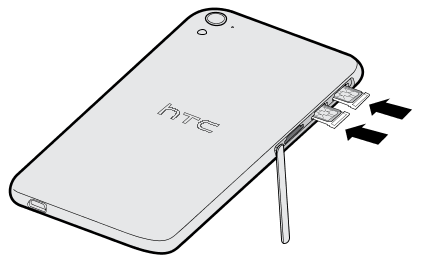

  5. When reinserting the trays, make sure they are facing up so that the nano SIM cards don’t fall out. Slide the trays all the way into the slots.
  6. To close the slot cover, slide the plastic hinge into the side and press the cover until it clicks into place.

Removing a nano SIM card

Important: Make sure to switch off HTC One E9‍s before removing the card.
  1. Open the slot cover with your thumb or finger.
  2. Pull the tray out from the nano SIM slot, and remove the nano SIM card.
  3. To close the slot cover, slide the plastic hinge into the side and press the cover until it clicks into place.
