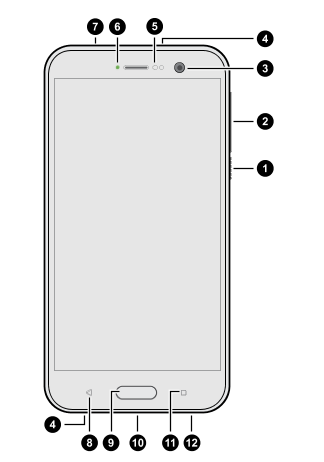

HTC U Play overview

After taking HTC U Play out of the box, familiarize yourself first with the location of the card slots and the different button controls.

Note: Dual SIM card support varies by phone model, region, and country.

1. POWER
2. VOLUME buttons
3. Front camera
4. Microphones
5. Proximity sensor
6. Notification LED
7. nano SIM and storage card tray
8. BACK
9. HOME / Fingerprint scanner
10. USB Type-C™ connector
11. RECENT APPS
12. Speaker

Important:

You need a 4G‍/LTE plan to use your operator's 4G/LTE network for voice calls and data services. Check with your operator for details.

Note:

• If you want to use a case or screen protector, don’t cover and block the proximity sensor. Purchase a case or screen protector designed for HTC U Play.
• Avoid liquid or dust from entering the microphone hole to prevent damage to the microphone.
• Don’t disassemble any part of the phone. Don’t try to open the phone or remove the battery by force. This may damage the phone or its electronics and will invalidate the warranty.

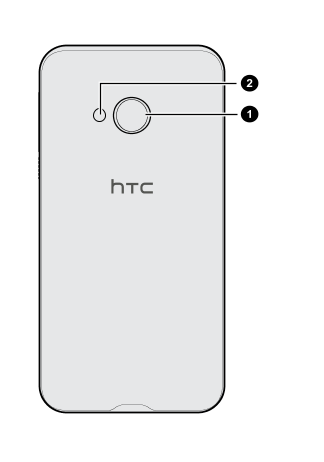

Back panel

1. Main camera with OIS and PDAF
2. Dual LED flash

Note:

• OIS stands for Optical Image Stabilization.
• PDAF stands for Phase Detection AutoFocus.
